Korbyt supports several configurations that take Signage from a passive experience to an interactive one.
This article serves as a guide to the different ways interactivity can be configured in Korbyt.

Interactivity Options Reviewed in this article - use the On this page to the right to navigate

• Interactive Elements in the Layout Builder

• Quick Actions in the Layout Builder for User Interactivity

• Data Triggers for Automated Reactions

• Kiosk Builder

• Optics

• Third-Party Interactivity and Responsive Spaces

Interactive Elements in the Layout Builder

The Layout Builder lets users create designs with multiple content types all sharing the same screen space by placing multiple Elements together.

Elements are drag-and-drop content types that can be configured for various use cases.
Some Elements are interactive or allow interactivity through their normal behavior.

Expand for Interactive Elements in Korbyt

Element	Description
	Adds a room, floor, or building map that is within Korbyt Wayfinding & Space Management. How To Use a Map Element
	Allows you to add a scheduling experience for your workplace. This element is interactive when displayed on a player and can view room schedules and book rooms for use. Outlook and Google calendars are supported. How To Use a Room Scheduling Element
	For interactive use cases like Kiosk, Wayfinding or Space Management. Adds an interactive Button that can be linked to Room Booking, IFTTT programming, or other Kiosk Pages. How To Use a Button Element
	Can add an external website. Can be interactive. Websites that require authentication can also be added with specific authentication values. How To Use An External URL Element
	Creates a list of files based on the content that has been loaded to a specific folder within the Media Manager. The list shows a Thumbnail and a file name, allowing the user to click the file to view it or download it depending on the file type. How To Use a File List Element
	Creates a QR Code that will direct a person who scans it to a specific website. The colors of the QR code are customizable. How To Use a QR Code Element
	Adds a meeting display element that creates a meeting room door sign, this is linked to the room schedule data that is provided through a Data Adapter within Korbyt. Requires that a Data Adapter has been configured and the design subscribes to that data. How To Use a Meeting Display Element
	Allows the linking of two data subscriptions into one layout to view 2 layers of data. Data Subscriptions are still defined in the Control Panel
	Adds a document that has been uploaded to Media Manager. Can set display time between pages. How To Use a Document Element
	Layout Only – Builds an interactive form that someone could fill out on a Kiosk or on a Sonar. How To Use a Form Builder Element
	Layout Only – Links to a Survey Built in Korbyt Anywhere within the Survey Tool. How to Use a Survey Element
	Adds an element that can hold custom HTML code. That custom code will then appear in the Builder Tool. How To Use an HTML Container Element
	Allows you to link to Tableau data using your Tableau credentials to make a Tableau dashboard seen in a Layout or Message How To Use a Tableau Element
	Layout Only – Pulls in data from the PowerBI Service with Microsoft for data visualization. How To Use a PowerBI Element

For a list of ALL elements please see Layout And Message Builder Elements
For more details on how to use the Builder Tool to design a Layout see Using The Builder Tool For Layouts Or Messages

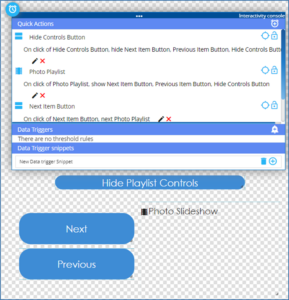

Quick Actions in the Layout Builder for User Interactivity

Quick Actions allows designers to embed interactive logic and macros into any Layout.
This is done using the UI to select an element, configure a trigger, and then the desired response.

This interactivity is done by applying instructions to elements that already exist in a Layout without changing to a whole new layout.

Common Use Cases of Quick Actions:

• Toggling visibility of a set message or element

• Sending a command to an element like Playlist or Carousel to change which item is displaying

• Refresh Data

• Trigger animations

For more details on how to configure a Quick Action see the Quick Actions for Interactivity in a Layout or Message

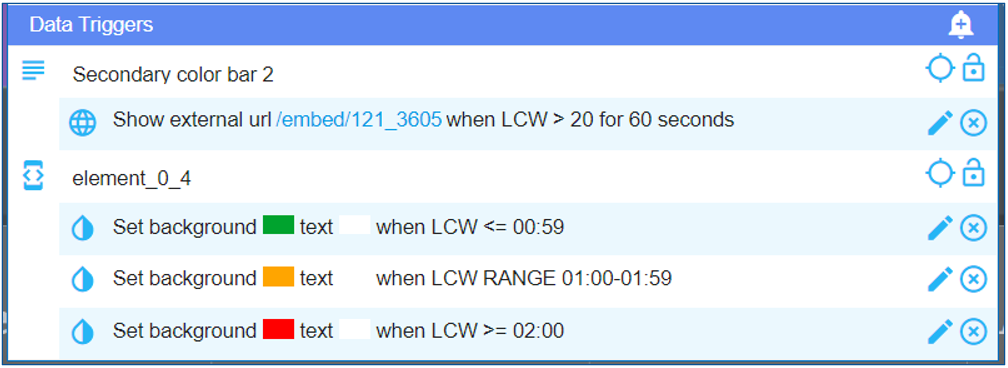

Data Triggers for Automated Reactions

Data Triggers allow designers to embed reactive logic into any Layout controlled dynamically by the information provided in a Data Integration.
This is done using the UI to select an element, configure a Data Trigger, and then the desired response.

This type of change does not require any direct user action, but is programmed into the Layout to interact with your stream of data

Common Use Cases of Data Triggers:

• Changing formatting of text to draw attention to KPI values

• Toggling visibility of a set message or element to drive specific actions

For more details on how to configure a Data Trigger see Data Triggers to have Real Time Data Effect Layout Elements

back to agenda

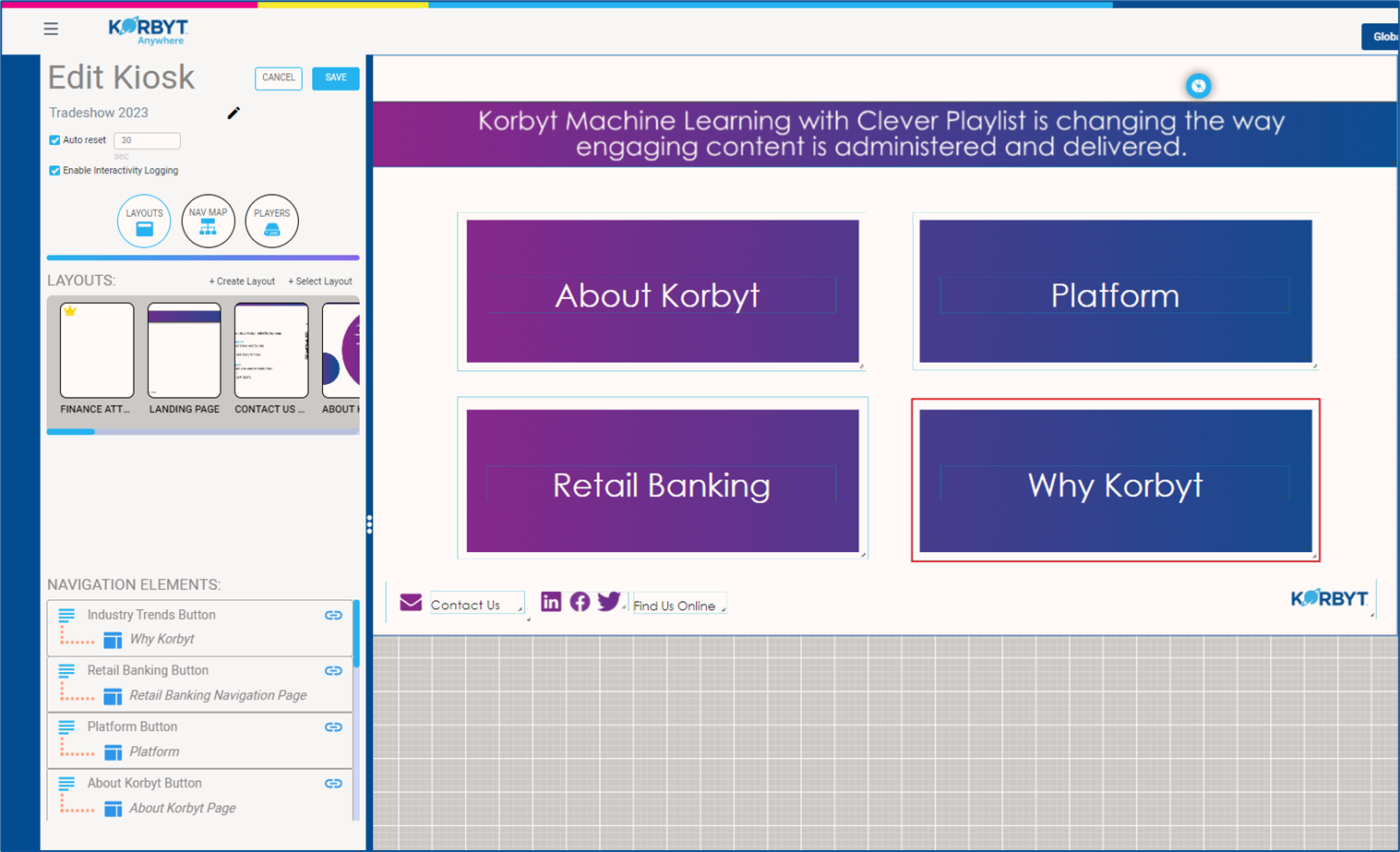

Kiosk Builder

Korbyt Kiosk Builder allows you to build a collection of Layouts/templates that end users can navigate through using interactive touch screens or keyboard/mouse.

Unlike Quick actions that stay on 1 layout and toggle items Kiosk allow the user to move through multiple “pages” of layouts offering more customization and variation.

Kiosk builder includes the ability to enable and configure Interactivity Analytics to provide feedback on user engagement.

For more details on how to use the system, see the Kiosk Builder article

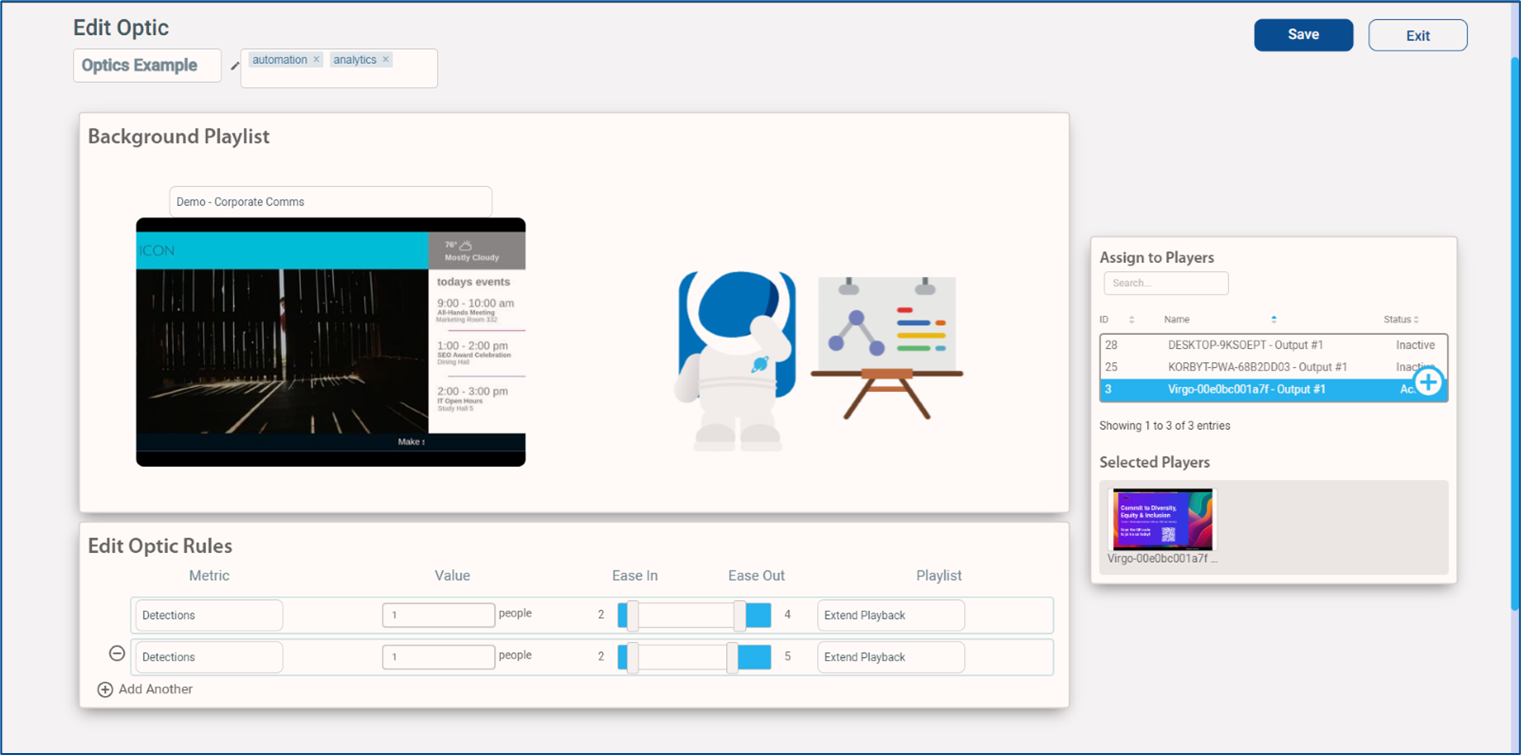

Optics

Optics is a subscription-based Korbyt feature for Digital Signage that uses a USB camera attached to a media player to interact with end users by changing the playlist that is being displayed.

Content can be set to change based on the number of Detected users and Dwell-Time.

Collected data is text-only and used for content automation purposes, and Analytics on user engagement.

For more details on the requirements and configuration of Optics see Korbyt Optics Service To Control Digital Signage

Third-Party Interactivity and Responsive Spaces

Korbyt enables the use of a variety of third-party sensor types, including sensors, remote controls, database data triggers, tablets, and more.

For diagrams of high-level system integration see Remote Control Of Korbyt Players And Content From External Devices

These options can be customized to meet your needs and should be reviewed with your Korbyt Sales or Service representative for more specific details.
